Lanxiang SU-47 2x70mm Jet Vector Thrust Kit RC Airplane
Lanxiang SU-47 2x70mm Jet Vector Thrust Kit Rc Airplane
1)Requires Minimum 7 Channel Radio
2.Require 7 Channel Receiver
3.Require 6 Cells 22.2V 4000 mAh 35c Lipo Battery
if you want to know wholesale discount price,please contact us by e-mail.
Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp
Key Features
- New version with improved retract doors
- New version with Twin 70mm metal EDF
- New version with upgraded 80A Hobbywing brushless ESC
- 8 operable channels (aileron, elevator, throttle, rudder, retract, canard, thrust vectoring, brake parachute ejection)
- Tail rudders
- Flipping vector switch on transmitter allows for deactivating/activating vector system
- Pilots using their own radio systems will need to adjust Travel Adjust and or EPA (End Point Adjustment) settings before operating
- Unique design, only Lanxiang owns the model
- High speed at 120km/h
- Retractable landing gear
- Stable invert flight
- Excellent stability of nosing up and down .
- Excellent hedgehopping performance
- With 2* 360 degree Vector
- With LED light
- With drag parachute
- 3D actions
Technical Specifications
- Length:1500mm
- Wingspan:1120mm
- Wing Area:47.4d
- EDF Diametre: 2x70mm
- ESC:Hobbywing 2*80A
- 13 x Digital metal 17g servo
- 2 x 2700KV Brushless motor
- Flying weight:2000g
- EPS foam material
- Thrust: >= 2500 g
- With 360 degree vector
Package Details
- Lan xiang SU-47 2x70mm Jet Vector Thrust Kit RC Airplane
- Vector thrust, brake parachute, metal EDF, Hobbywing ESC and metal digital servos,are not installed
- English manual
Requires
- Minimum 7 Channel Radio
- 7 Channel Receiver
- 6 Cells 22.2V 4000 mAh 35c Lipo Battery
- Lipo Battery Charger
- 13 x Digital metal 17g servo
- 2 x 2700KV Brushless motor
- Vector thrust, brake parachute, metal EDF, Hobbywing ESC and metal digital servos
DATA SHEET
| Wingspan (mm): | 1120mm / 44in |
| Length (mm): | 1500mm / 59in |
| Flying weight (gr) | 2000g / 70oz |
| CG (Center of Gravity) | Check manual |
| Servos | 13x 17 gr metal gears digital |
| EDF Thrust | 2500 gr |
| Direction of Rotation (EDF Rotor) | Classic Counter Clock Wize (CCW) |
| EDF Diameter Class (mm): | 2 x 70 |
| Turbine shroud | Metal |
| EDF Rotor | Synthetic |
| Power System | 2x 2700kV Outrunner Brushless |
| Motor Type: | Out-Runner |
| Electronic Speed Control | 2x 80A Hobbywing - 5A BEC |
| Battery Cells: | 6s - 22.2v |
| Battery Capacity (mAh) | 4.000 mAh |
| Connection: | PK 5.5mm male/female (Bullet Connector) |
| Surfaces | Ailerons, Elevator, Rudder, Parachute system, Vector thrust, Canards |
| Landing Gear | Full metal retractable main and steerable nose gear with shock absorbing struts |
| Lights | Navigation lights |
| Material | EPS Foam, Carbon reinforcements |
| Build time | 3 hours |
| Radio requise | Minimum 7 channels |
| Recommended pilot skill level | Intermediate, Advanced, Expert |

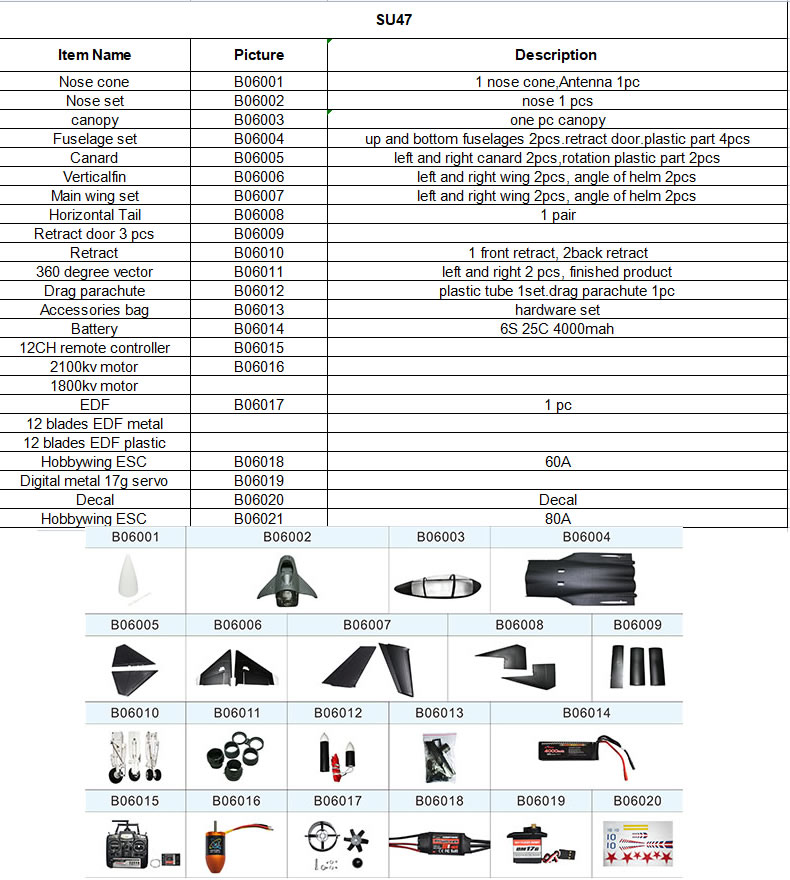

Sky Flight Hobby SU-47 2x70mm Jet Vector Thrust PNP Parts List
The main difference is what is included in the package. Since there are no set parameters for packaging options in this hobby, different manufacturers may vary their definitions of what is included. ARF indicates that all the foam pieces along with the crucial components of aesthetic appearance are included in the package. Some on-board electronics may be included with an ARF such as the electric retracts and will be noted on the specifications of the model. Note that this packaging option is recommended for advanced individuals with knowledge in customizing their onboard electronic components or for those not intending to fly this model. PNP indicates that all the foam pieces along with the crucial components of aesthetic appearance and electronic components are included with the exception of the battery, balance charger, and radio system (transmitter and receiver). Most on-board electronics are pre-installed by the manufacturer. Note that this packaging option is recommended for those who already own a radio system, battery and balance charger. RTF includes all the foam pieces along with the crucial components of aesthetic appearance, electronic components, battery, balance charger and radio system unless noted otherwise. Most on-board electronics are pre-installed by the manufacturer. Note that this packaging option is recommended for beginners or first-time pilots. Be aware of balance charger accessories that are not included (wall adapters usually sold separately). Advanced models with the RTF option may or may not come with a battery or charger. Please read the Package Includes area carefully under the item's for clarification of what is included with the package. |
