Sky Flight Hobby SU-47 2x70mm Jet Vector Thrust PNP Rc Airplane

Sky Flight Hobby SU-47 2x70mm Jet Vector Thrust PNP Rc Airplane

Wholesale price: [ $300.00 ]
Sky Flight Hobby SU-47 2x70mm Jet Vector Thrust PNP Rc Airplane

1)Requires Minimum 7 Channel Radio
2.Require 7 Channel Receiver
3.Require 6 Cells 22.2V 4000 mAh 35c Lipo Battery
if you want to know wholesale discount price,please contact us by e-mail.

Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp

Sky Flight Hobby SU-47 2x70mm Jet Vector Thrust PNP Rc Airplane Specifications:



Key Features

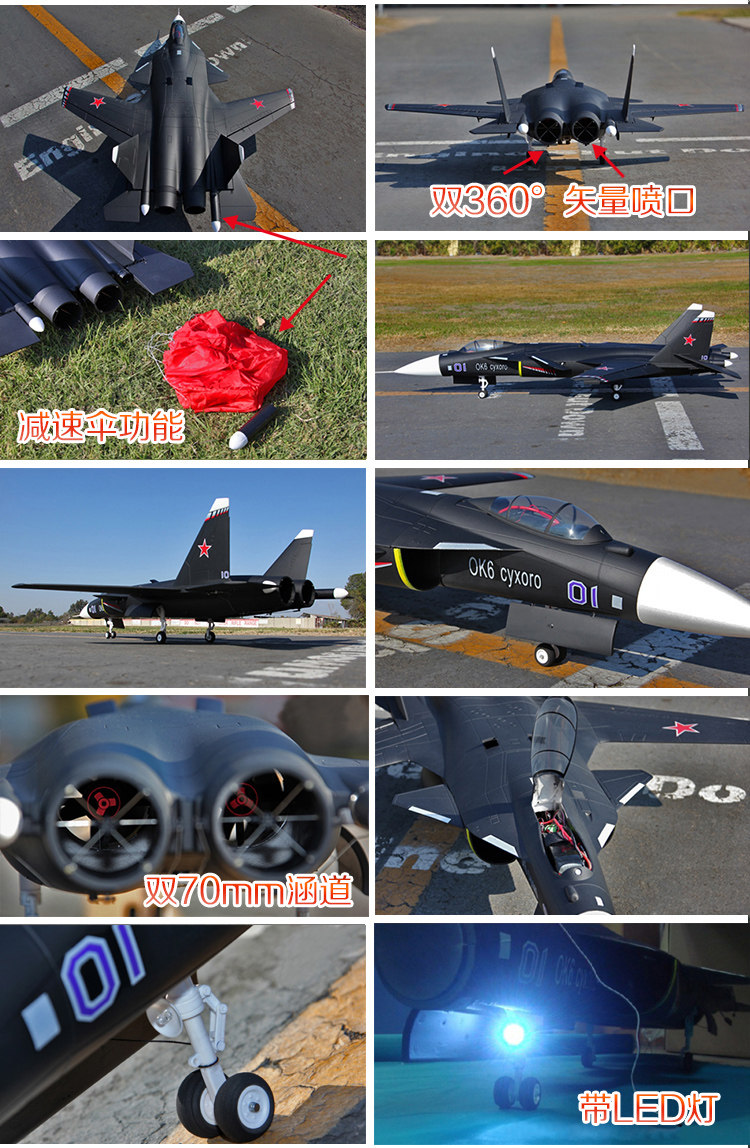

  • New version with improved retract doors
  • New version with Twin 70mm metal EDF
  • New version with upgraded 80A Hobbywing brushless ESC
  • 8 operable channels (aileron, elevator, throttle, rudder, retract, canard, thrust vectoring, brake parachute ejection)
  • Tail rudders
  • Flipping vector switch on transmitter allows for deactivating/activating vector system
  • Pilots using their own radio systems will need to adjust Travel Adjust and or EPA (End Point Adjustment) settings before operating
  • Unique design, only Lanxiang owns the model
  • High speed at 120km/h
  • Retractable landing gear
  • Stable invert flight
  • Excellent stability of nosing up and down .
  • Excellent hedgehopping performance
  • With 2* 360 degree Vector
  • With LED light
  • With drag parachute
  • 3D actions

Technical Specifications

  • Length:1500mm
  • Wingspan:1120mm
  • Wing Area:47.4d
  • EDF Diametre: 2x70mm
  • ESC:Hobbywing 2*80A
  • 13 x Digital metal 17g servo
  • 2 x 2700KV Brushless motor
  • Flying weight:2000g
  • EPS foam material
  • Thrust: >= 2500 g
  • With 360 degree vector

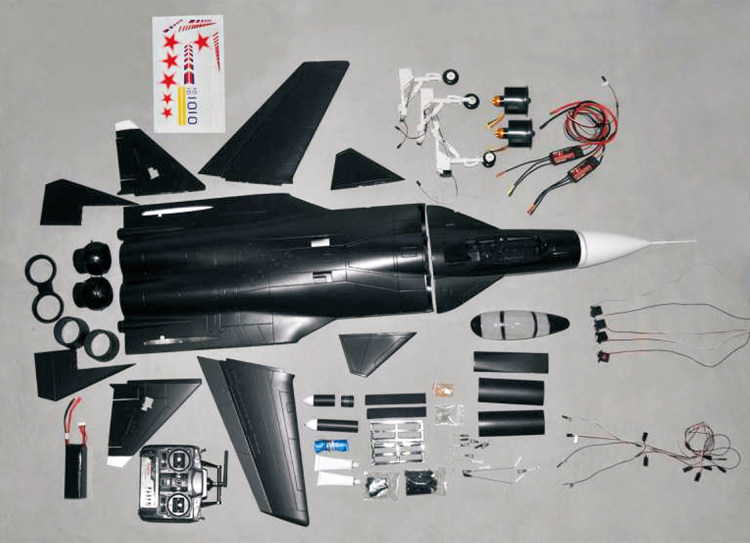

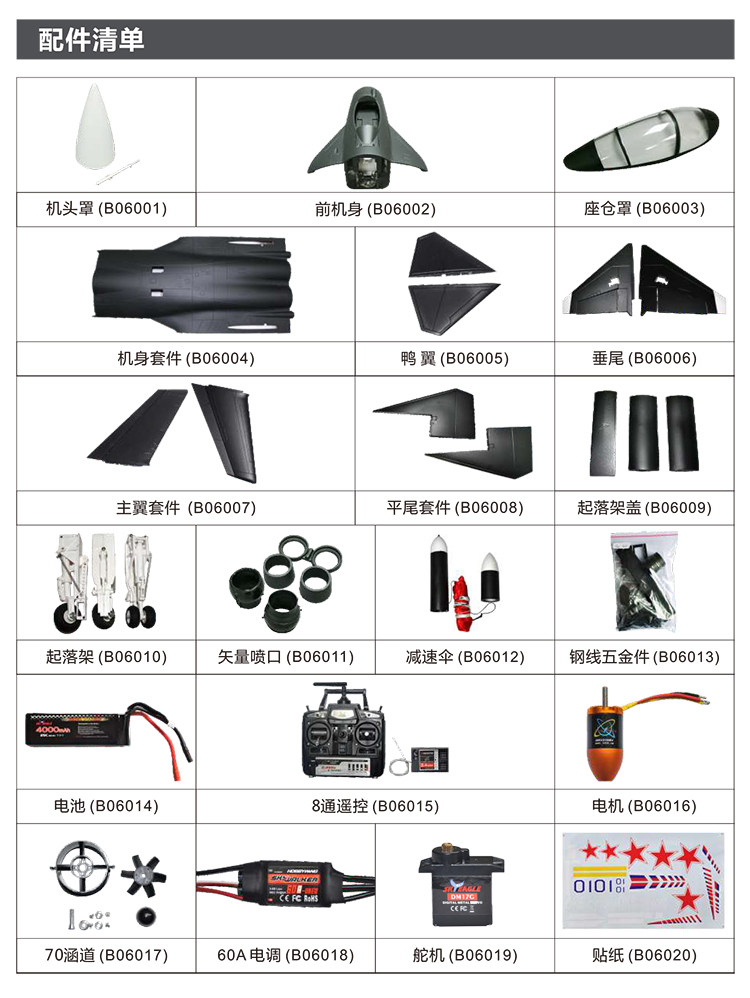

Package Details

  • Sky Flight Hobby SU-47 2x70mm Jet Vector Thrust PNP UPGRADE,
  • Vector thrust, brake parachute, metal EDF, Hobbywing ESC and metal digital servos,are installed
  • English manual

Requires

  • Minimum 7 Channel Radio
  • 7 Channel Receiver
  • 6 Cells 22.2V 4000 mAh 35c Lipo Battery
  • Lipo Battery Charger

DATA SHEET

Wingspan (mm): 1120mm / 44in
Length (mm): 1500mm / 59in
Flying weight (gr) 2000g / 70oz
CG (Center of Gravity) Check manual
Servos 13x 17 gr metal gears digital
EDF Thrust 2500 gr
Direction of Rotation (EDF Rotor) Classic Counter Clock Wize (CCW)
EDF Diameter Class (mm): 2 x 70
Turbine shroud Metal
EDF Rotor Synthetic
Power System 2x 2700kV Outrunner Brushless
Motor Type: Out-Runner
Electronic Speed Control 2x 80A Hobbywing - 5A BEC
Battery Cells: 6s - 22.2v
Battery Capacity (mAh) 4.000 mAh
Connection: PK 5.5mm male/female (Bullet Connector)
Surfaces Ailerons, Elevator, Rudder, Parachute system, Vector thrust, Canards
Landing Gear Full metal retractable main and steerable nose gear with shock absorbing struts
Lights Navigation lights
Material EPS Foam, Carbon reinforcements
Build time 3 hours
Radio requise Minimum 7 channels
Recommended pilot skill level Intermediate, Advanced, Expert
